Name: Electric Heat Blower Swimming Pool Instant Water Heater Blower
Brand: Electric Heat Blower Swimming Pool Instant Water Heater Blower
SKU: G-RG148 / G-RG130
Price: 1 USD
Availability: InStock
Rating: 4.7 (108 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Centrifugal Blower

Rated Voltage: 220V

Rated Power: 50Hz

Model Number: G-RG148 / G-RG130

Application: Heat Blower

Pressure: High Pressure

Power Source: Electric Blower

Motor: Brushless DC Motor

Material Of Housing: Aluminum Die Casting

Bearing: NMB Maintenance-free Ball Bearing

Impeller: PA66+GF30 Anti-static & Fire Resistant Plastic

Lead Wire: AWG#18 UL1007

Type Of Protection: IP20

Safety: Electronic Protection

Insulation Class: Class "B" Or "F"

Speed Control: PWM Signal

Life Time: 20000 Hours (L10) At 40oC Room

Basic Infomation

Model Number: G-RG148 / G-RG130

Payment & Shipping Terms

Packaging Details: Carton package: 1pcs, 2.3kg, 22x23x19mm Pallet package: 125pcs, 310kg, 1100x1150x1050mm

Supply Ability: 50000 Piece/Pieces per Month

Product Description

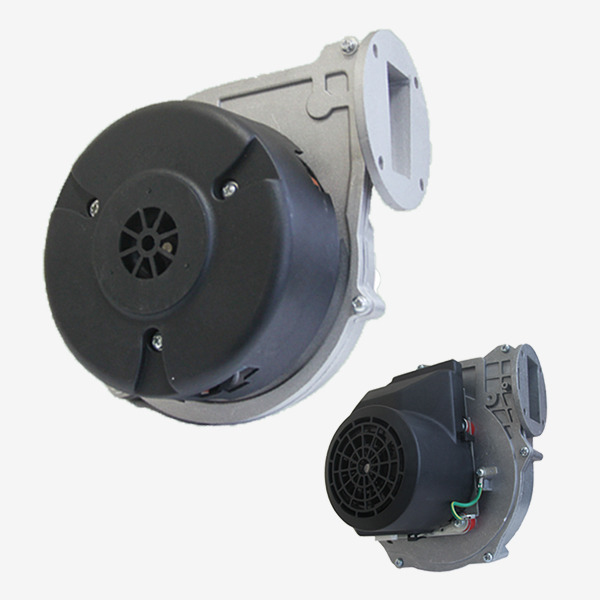

Swimming Pool Instant Electric Water Heater Blower

Product Overviews

EC DC Gas Blower Sizes	108, 118, 120, 130, 148, 150,175 series (or Customized)
AC Combustion Fan Sizes	85, 97, 108, 120 series (or Customized)
AC DC EC Centrifugal Blower Sizes	85mm~150mm (or Customized)
Voltage	AC Input: 210V,220V,230V,380V,400V DC Input: 12V,24V,48V EC input: 210V,220V,230V,380V,400V (or Customized)
Power	Up to 2300W (or Customized)
Speed	Up to 3300RPM (or Customized)
Air Flow	Up to 7000m3/h (or Customized)
Speed control	Speed controller (AC) or PWM/0-10V Input (DC EC)

DATASHEET DOWNLOAD

Product Description

Electrical Parameters
Motor	Brushless external rotor motor
Insulation Class	Class "B"
Speed Control	PWM Input
Type of protection	IP20
Operation Mode	S1
EMC	EN 55011 and EN50082-2
Mechanical Parameters
Impeller Dimension	Φ148mm
Material of Impeller	PA66+GF30 anti-static & fire resistant plastic
Other Parameters
Approval	CE, CCC, ErP2015 and Rosh compliance
Warrent	18 months after delivery

Specification
Item Code: G-RG148
Rated Voltage	Frequency (Hz)	Rated Current(A)	Input Power(W)	Speed (RPM)	Air Flow (CFM)	Air Flow (m3/h)	Static Pressure (Pa)	Noise dB(A)	Net Weight (Kg)
230V	50/60	≤0.95	135	5600	110	187	3200	71	1.90

Outline Drawing

Characteristic Curves	Wire Diagran
	Cable Color	Function
	Brown	L
	Blue	N
	Yellow/Green	PE
	Red	+10V output
	Yellow	0-10VDC / PWM
	Blue	GND
	White	Tach output

Application

Customized Solutions

Customized Fan and Blower Solutions

GP Motor specialize in design, custom and manufacture electric fans, including Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers, Fan Motors and Fan Components. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the fans in our Product Categories now!
