Home /Products/Portable Air Blower/New Design 20 Inch China Premier New Design Energy Saving Tunnel Smoke Ventilador Blower DC Brushless Motor Portable Type Fan

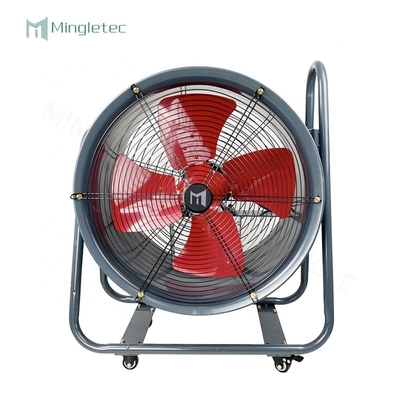

New Design 20 Inch China Premier New Design Energy Saving Tunnel Smoke Ventilador Blower DC Brushless Motor Portable Type Fan

2 Pieces
MOQ
$85.90(2 - 99 Pieces) $73.90(100 - 999 Pieces) $65.90(>=1000 Pieces)
Price
New Design 20 Inch China Premier New Design Energy Saving Tunnel Smoke Ventilador Blower DC Brushless Motor Portable Type Fan
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Axial Flow Fan
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops,
Electric Current Type: DC
Mounting: Wall Fan
Blade Material: Cast Iron
Model Number: MFJ-50
Voltage: 220
Warranty: 2 Years
After-sales Service Provided: Free Spare Parts
Product Name: China First New BL DC Motor Portable Type Tunnel Smoke Blower Fan
Size: 20inch
Air Volume: 8000m3/h
Speed: 1400rpm
Motor Type: DC Copper Motor
MOQ: 50pcs
Packing: 1pc/ctn
Material: Steel
Feature: Saving Energy
Blade: 3 Blades
Certification: Ce, CCC
Basic Infomation
Certification: ce, CCC
Model Number: MFJ-50
Payment & Shipping Terms
Packaging Details: 1 carton includes 1 piece and we can provide varies packages according to customers' requirements such as wooden , plywood case or waterproof cloth ect .
Product Description
20 inch China First New Design Brushless DC Motor Portable Type Tunnel smoke Ventilador Blower Fan
Products Description
Model
Voltage
(V)
Power
(W)
Speed
(r/min)
Air Volume
(m3/h)
Product Size(mm)
A/B/C/D/E/F/G
Weight
(kg)
MFJ-A30
220V/50Hz
50
1400
2500
310/360/375/230/260/335/6~7
10.4
MFJ-A40
220V/50Hz
150
1400
5300
410/460/480/260/310/435/8~9
12.4
MFJ-A50
220V/50Hz
30~400
600~1400
3330~8000
510/560/595/260/310/535/8~9
15
MFJ-D30
220V/50Hz
30~160
600~2800
1300~4600
310/360/375/230/260/335/6~7
10
MFJ-D40
220V/50Hz
30~400
700~2800
2000~8000
410/460/480/260/310/435/8~9
12.7
MFJ-C30
220V/50Hz
50
1400
2500
310/360/375/230/260/335/---
15.4
MFJ-C40
220V/50Hz
150
1400
5300
410/460/480/260/310/435/---
18.4
MFJ-C50
220V/50Hz
30~400
600~1400
3330~8000
510/560/595/260/310/535/---
22

Product Features:

1. By using permanent magnet brushless DC motor. The motor with low temperature rises and remarkable energy-saving effect.
2. The energy saving for 40%-80%.
3. Fully sealed motor. No need heat dissipation. Dust proof, smoke proof, oil proof, which can be used in the harsh environment.
4. over-load protection, no burnt motor, and keeps the longer service life.
5. Frequency control provides the ideal air volume.
6. The blades incorporate with motor for best efficient rate.
7. Various sizes for choice from 12inch to 20inch.
8. Widely used in the general environment of the factory, workshops, warehouses, basements etc, for ventilation and improving environment.
Details And Options

National patented chip technology

Intelligent power supply scheme, high-voltage DC conversion function, intelligent sensing of operating load status, logic algorithm power supply, minimal heat dissipation.

12-pole precision DC stator

High-quality copper wire, 12-pole automatic precision winding,small heat generation, small gap, multi-stage energization, high magnetic density.

Multi-pole permanent magnet rotor

Adopt the world's advanced magnetic powder high-density plasticizing technology, while achieving clear magnetic poles, high magnetic density and good balance
MFJ-C
Brushless DC 1400RPM Industrial Stand Axial Fan
MFJ-A
Brushless DC 1400RPM Industrial Axial Fan
MFJ-D
Brushless DC 2800RPM Industrial Axial Fan
