DRAGONPOWER ceramic heaters are heater bands with ceramic insulation that are employed in the heating of the plastification cylinders of the plastic moulding machines, injection machines, extrusion machines. They are recommended when the operational temperature exceeds 280°C and in all cases presenting severe operational conditions. Thanks to the most advanced technical solutions, to the selection of the most appropriate materials and to the severe quality control procedures, they are characterised by:
1. Long Operational Life
2. Energy saving
3. Fast heat conduction
4. Uniform heat distribution
5. High electrical insulation
6. Easy installation
7. Great mechanical resistance to shocks and to tearing applied to the cables
8. Tight manufacturing tolerances
9. Various sizes, no limited max sizes.
Patent got by DRAGONPOWER: Spring on fastening device based on principle Thermal Expension.
Reference table of air cooling ceramic heater :
|
Model |
Dimension(mm) |
Voltage(V) |
Power(W) |
Key Technical Indexes |
|
LK-TC-Φ125X51 |
Φ125X51 |
230V |
500W |
1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current: <0.5MA 3.Insulation resistance:≥5Mo 4.Ground resistance: <0.1o 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance: 500-800°C 7.Power deviation:+5%-10%
|
|
LK-TC-Φ105X66 |
Φ105X66 |
230V |
800W |
|
|
LK-TC-Φ185X51 |
Φ185X51 |
230V |
1100W |
|
|
LK-TC-Φ190X85 |
Φ190X85 |
230V |
1500W |
|
|
LK-TC-Φ220X75 |
Φ220X75 |
230V |
1700W |
|
|
LK-TC-Φ180X90 |
Φ180X90 |
230V |
1700W |
|
|
Note: Other models are available according to your specifications. Please refer to the Order Guide,our products made customized! |
||||

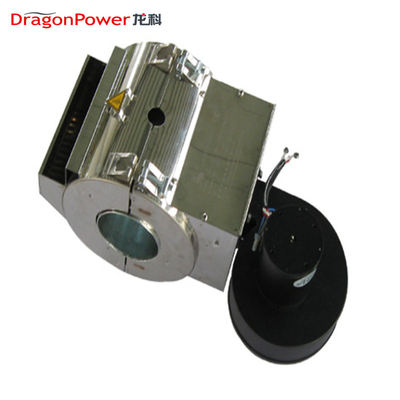

Reference pictures of air cooling ceramic heater:
Packaging: tubular heater in plywood case outside if needed.
Shipment: 1.small quantity by DHL,FEDEX
2.Bulk goods by Sea Freight
3. Arranged to your order
DragonPower specializes in producing industrial electric heaters with a strength in R&D.
Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
Order Guide:
Please specify the following when ordering:
1. Diameter (mm) of heaters
2. Total length of heaters (mm)
3. Type of leads and length
5. Voltage and power density
6. Content of the stamping if needed
7. Order quantity
8. Delivery date
It’s better to provide us with the drawings/pictures
