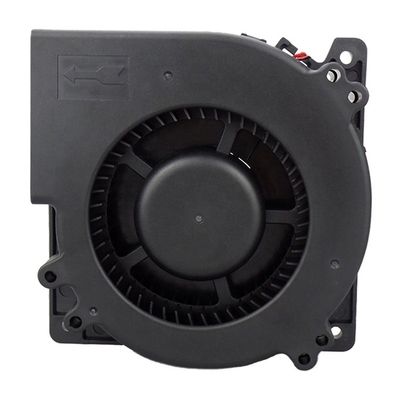

| Product name | DC blower fan |
| Size | 120x120x32mm |
| Voltage | 12v/24v/48v |
| Speed range | 2000-3500rpm |
| Air flow range | 23.6-39.7CFM |
| Bearing type | Ball Bearing |
| Package | 50 pcs/carton |
| Model | Rated Voltage | Voltage Range | Current | Power | Speed | Air Flow | Pressure | Noise | Weight | ||
| VDC | VDC | Amp | Watts | RPM | m³/min | CFM | mm Aq | In H2O | dBA | g | |
| FD1232B4U-BP00 | 24 | 12~26.4 | 0.55 | 13.20 | 3500 | 1.12 | 39.7 | 46.58 | 1.84 | 58.4 | |
| FD1232B4H-BP00 | 0.32 | 7.68 | 3000 | 0.97 | 34.4 | 37.24 | 1.47 | 53.6 | 205.7 | ||
| FD1232B4M-BP00 | 0.24 | 5.76 | 2500 | 0.80 | 28.3 | 26.37 | 1.04 | 48.2 | |||
| FD1232B4L-BP00 | 0.12 | 2.88 | 2000 | 0.67 | 23.6 | 16.43 | 0.65 | 42.1 | |||
| FD1232B2U-BP00 | 12 | 6~14 | 1.00 | 12.00 | 3500 | 1.12 | 39.7 | 46.58 | 1.84 | 58.4 | |
| FD1232B2H-BP00 | 0.70 | 8.40 | 3000 | 0.97 | 34.4 | 37.24 | 1.47 | 53.6 | |||
| FD1232B2M-BP00 | 0.45 | 5.40 | 2500 | 0.80 | 28.3 | 26.37 | 1.04 | 48.2 | |||
| FD1232B2L-BP00 | 0.30 | 3.60 | 2000 | 0.67 | 23.6 | 16.43 | 0.65 | 42.1 | |||
| DC fan Size | Speed Range |
| 25x25x7mm | 8000-12000rpm |
|
25x25x10mm |
8000-12000rpm |
| 30x30x7mm | 6000-10000rpm |
| 30x30x10mm | 6000-10000rpm |
| 35x35x10mm | 5000-9000rpm |
| 40x40x10mm | 5000-8000rpm |
| 40x40x20mm | 5000-9500rpm |
| 40x40x28mm | 7000-20000rpm |
| 45x45x10mm | 4500-6500rpm |
| 50x50x10mm | 4000-6000rpm |
| 50x50x15mm | 4000-7000rpm |
| 50x50x20mm | 3000-6500rpm |
| 60x60x10mm | 3000-4000rpm |
| 60x60x20mm | 3000-6000rpm |
| 60x60x25mm | 4000-7000rpm |
| 60x60x38mm | 7000-12000rpm |
| 70x70x25mm | 3500-5000rpm |
| 80x80x10mm | 2000-3000rpm |
| 80x80x15mm | 2500-4000rpm |
| 80x80x25mm | 2000-5000rpm |
| 80x80x38mm | 5000-8000rpm |
| 92x92x25mm | 2000-4000rpm |
| 92x92x38mm | 4000-5500rpm |
| 120x120x25mm | 1500-5000rpm |
| 120x120x38mm | 2500-5000rpm |
| 172x150x51mm | 3000-4500rpm |
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V 48V 60V and72V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
|
Bearing type |
Lifetime |
|
Dual Ball Bearing |
50000 hours |
|
Sleeve Bearing |
20000 hours |
|
Hydraulic Sleeve Bearing |
30000 hours |
Q4:Certificate?
A4:FCC,CE, ROSH,ISO9001,ISO14001 Approved.
Q5:What is the delivery time?
A5:Sample lead time:3-5 days
Mass production delivery lead time:2-3 weeks(Depend on the quantity)
Q6:Delivery ways ?
A6:FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
Q7:Payment terms ?
A7: By T/T or Paypal .
100% payment for sample orders .
30% as deposit and 70% balance before shipment .
Q8: What is the fan use for?
A8:
|
Office supplies |
3D printers |
|
Industry & Scientific |
Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer. |
|
Home & Kitchen |
Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine. |
|
Computer appliances |
CPU cooler,Case. |
