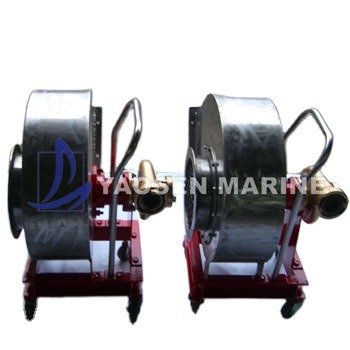

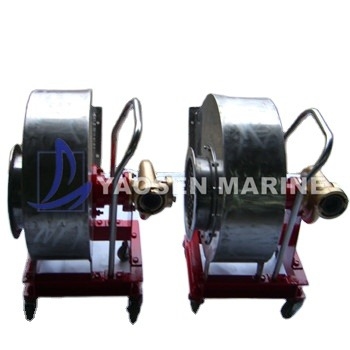

CSL-240 Marine Water Explosion Proof Explosion Proof Driven Gas Releasing Centrifugal Blower

1.0 Pieces
MOQ
CSL-240 Marine Water Explosion Proof Explosion Proof Driven Gas Releasing Centrifugal Blower
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Machinery Repair Shops, Other, Ship Repairing Service, Shipbuilding Industry, Offshore Oil Platform
Customized Support: OEM
Electric Current Type: AC
Blade Material: Aluminum
Mounting: Duct Fan
Model Number: CSL-240
Warranty: 1 Year
After-sales Service Provided: Online Support
Product Name: CSL-240 Marine Water Driven Gas Freeing Centrifugal Blower
Air Flow Rate: 2000-5000m/h
Material: Carbon Steel
Water Pressure: 0.2-0.7 M Pa
Static Pressure: 920-1500Pa
Feature: Explosion Proof
Application: Marine Use
Fan Type: Centrifugal Fan
Certification: CCS/LR/VR/BV/ABS/GL/RS
Basic Infomation
Certification: CCS/LR/VR/BV/ABS/GL/RS
Model Number: CSL-240
Payment & Shipping Terms
Packaging Details: Export Standard Seaworthy Packing Wooden box/Iron Box Container According to customer's request
Supply Ability: 50000 Case/Cases per Month
Product Description
Product Overview
CSL-240 centrifugal fans, this series enjoys high anti-explosive grades and is capable of directly removing or ducting
flammable and explosive gaseous mixture or steam as well as those poisonous or harmful gases, being important system equipment for the oil tanker and chemical vessels.
Detailed product introduction
CHARACTERISTICS
CSL-240 explosion-proof centrifugal
ventilator fan enjoys high anti-hazard classification, sound anti-corrosion, anti-wobble, anti-vibration and anti-shock
performance. The whole fan is featured in simple and compact structure, low weight, simple operation as well as good move ability
driven directly by fire protection water, this ventilator is capable of ducting such dangerous gases as flammable and explosive
gases or steam.

Structural style
CSL ventilator fan is composed of water turbine frame, casing, rotor, impeller, etc. the water turbine is precisely cast of anticorrosion copper alloy, the casing is soldered of
austenitic stainless steel. And the impeller is cast of high strength aluminum alloy, with the whole structure of no-spark desig the angles for air-outlet are r90℃for air supply and 225℃ for air exhaust as a result, this type of ventilator can’t change the model.
Model explanation
OUTLINE DIMENSIONS

Working conditions
For palaces where there are explosive grade IIB and IIC and group from T4 to T6.
Ambient temperatures: -25℃~55℃
Relative humidity of the air: ≤95%
Cyclical vacillation: ±22.5℃~45℃
Sustained horizontal tilting: ±15℃
Sustained vertical tilting: ±10℃
Vibration: existence
Shock: existence

Product packaging
In order to prevent the fan from being knocked against in transportation, the fan is wrapped by winding film and packed in wooden case.
Package Type:
Export Standard Seaworthy Packing
Wooden box/Iron Box Container
According to customer's request
Our Advantages
1 We have our own factory. Everything can be rest assured working with you.
2 Cooperating with the customers all over the world and knowing the markets very well.
3 Our produces with excellent quality and competitive price”
4 After- Services will De highly satisfed. Any problems and feedbacks wi be answered m a short of time.
The idea of our company is that : quality based , the company provides good and cheap products and high quality service for clients based on equity , reciprocal and mutual benefit principle.
Our product quality and our service are the key to survival.
Our service is to meet the maximum satisfaction of customers
FAQ
Q1：How about the price?
A1: The price is negotiable. It can be changed according to your quantity or packaging.When you are making an inquiry, please let us know the quantity you want.

Q2:Do you provide OEM service?
A2:Yes,we welcome OEM.

Q3:What’s your type of transport?
A3:We will help you to choose the best transport way according to your detail requirements,by sea or by air.

Q4:What payment terms are acceptable to you?
A4: Our payment terms is mainly choice T/T,L/C or other terms you are convenient.
