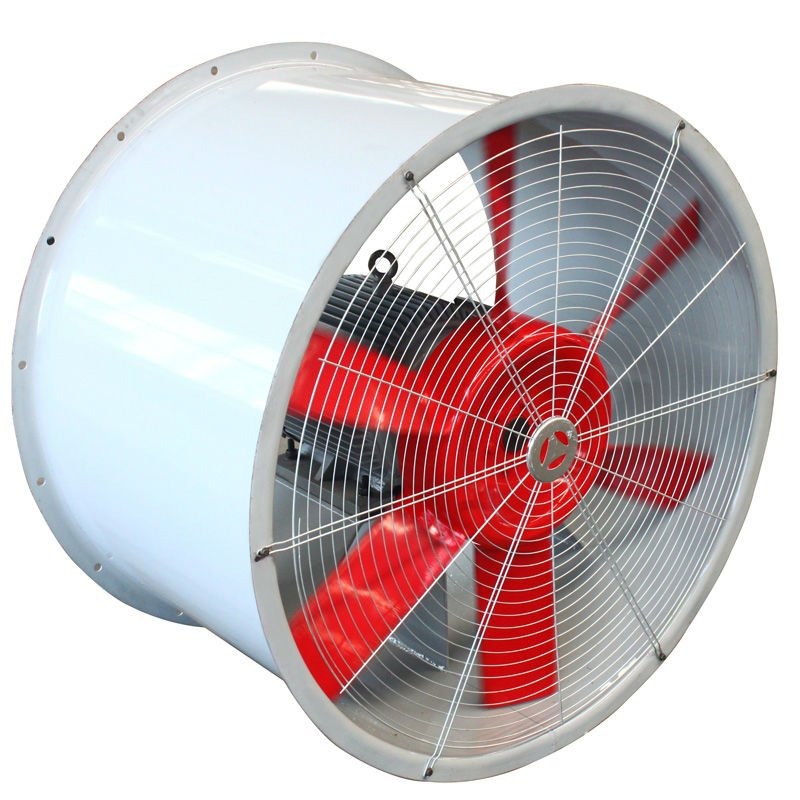

High Velocity Fan For Ventilation
Function
T08 fans are widely used in factories, warehouse, office, and home, and can be used as fans when remove the cane , and can also be connected in long pipes to improve the pressure.
T08 2.8 fans can be divided into10 specifications according to the impeller angle, each type of vane can be mounted by 15°, 20°, 25°, 30°, 35°.
T08 series fans adopts direct driving by motors . When Circumference speed of fans do not exceed 60m/s ,there are 2 kinds of speed:2900,1450r/min.
The main datas
|
Machine No. |
Diameter of impeller (mm) |
Angle of impeller (°) |
Spindle Speed (r/min) |
Total Pressure (Pa) |
Air Volume (m3/h) |
Motor Power (kW) |
|
2.8 |
280 |
15 |
2900 |
128 |
1224 |
0.120 |
|
20 |
141 |
1742 |
0.180 |
|||
|
25 |
143 |
2560 |
0.180 |
|||
|
30 |
165 |
2495 |
0.350 |
|||
|
35 |
186 |
2778 |
0.370 |
|||
|
15 |
1450 |
32 |
613 |
0.37 |
||
|
20 |
35.2 |
873 |
0.37 |
|||
|
25 |
35.7 |
1133 |
0.37 |
|||
|
30 |
41.2 |
1251 |
0.75 |
|||
|
35 |
46.6 |
1392 |
0.75 |
Application
(1) When the pipe diameter equals to the air duct ,the loss can be ignored .2) If FMP/F1≤1.5, The pipe length does not 5 times lower than the diameter pipeline,the fan diffuser may not be mounted.
(3) If1.5≤ FMP/F1≤2.5, the pipe and the axial fan should be mounted with the following fan diffuser
(4) If FMP/F1≥2, the pipe and the axial fan should be mounted with the following fan diffuser.
2. If the axial fan is used in the long exhausting pipe, the axial fan can be mounted by series connection as the following to improve the pressure, but the distance cannot be too far.
We are strict with every step about the industrial centrifugal fan and axial fan.
Packing detail:High Velocity Axial Fan For Ventilation is packed by wooden case and steel pallet
Delivery detail: 35 days after receive your payment
Xinxiang SIMO BLOWER Limited Company which was founded in 1955, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
At present, SIMO BLOWER' s customers distribute in these countries:
EUROPE: British, Denmark, Italy, Romania, Russia, Ukraine.
AMERICA: USA, Mexico, Peru.
ASIA: China, India, Indonesia, Israel, Korea, Malaysia, Pakistan, Philippines, Saudi Arabia, Thailand, UAE, Vietnam. Bangladesh
1. How many years your company has experience in centrifugal fan machines?
Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 60 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.
2. How about your company’s pre-sales service and after-sales service?
Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
