| Model | Rated Voltage | Voltage Range | Current | Power | Speed | Air Flow | Pressure | Noise | ||
| VDC | VDC | Amp | Watts | RPM | m³/min | CFM | mm Aq | In H2O | dBA | |
| FD1232B4H-BP00 | 24 | 12~26.4 | 0.32 | 7.68 | 3000 | 0.97 | 34.4 | 37.24 | 1.47 | 53.6 |
| FD1232B4M-BP00 | 0.24 | 5.76 | 2500 | 0.80 | 28.3 | 26.37 | 1.04 | 48.2 | ||
| FD1232B4L-BP00 | 0.12 | 2.88 | 2000 | 0.67 | 23.6 | 16.43 | 0.65 | 42.1 | ||

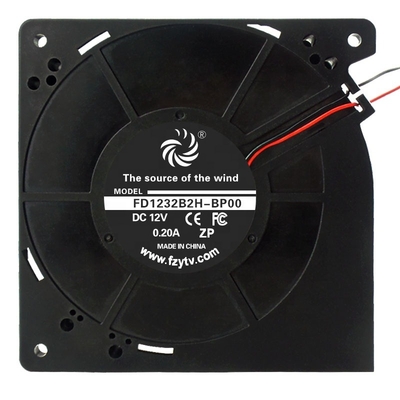

| FD1232B2H-BP00 | 12 | 6~14 | 0.70 | 8.40 | 3000 | 0.97 | 34.4 | 37.24 | 1.47 | 53.6 |
| FD1232B2M-BP00 | 0.45 | 5.40 | 2500 | 0.80 | 28.3 | 26.37 | 1.04 | 48.2 | ||
| FD1232B2L-BP00 | 0.30 | 3.60 | 2000 | 0.67 | 23.6 | 16.43 | 0.65 | 42.1 | ||
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V 48V 60V and72V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
|
Bearing type |
Lifetime |
|
Dual Ball Bearing |
50000 hours |
|
Sleeve Bearing |
20000 hours |
|
Hydraulic Sleeve Bearing |
30000 hours |
Q4: What effects the quoted price for the fan?
A4:
|
Specification |
Example |
|
1 size of the fan |
4010 (40*40*10mm) |
|
2 Voltage |
5V\12V\24V |
|
3 current |
0.15A |
|
4 speed |
8000RPM |
|
5 air flow |
8.6CFM |
|
6 noise |
24dBA |
|
7 bearing type |
ball\sleeve\Hydraulic sleeve |
|
8 two wire or three wire |
2 wire |
|
9 cable length |
100mm |
|
10 connector type |
2 pin,2.5mm pitch |
|
11 function |
FG\RD\PWM\Soft Start ...... |
|
12 quantity |
100\1000\5000\10000 ...... |
Q5:Certificate?
A5:FCC,CE, ROSH,ISO9001,ISO14001 Approved.
Q6:What is the delivery time?
A6:Sample lead time:3-5 days
Mass production delivery lead time:2-3 weeks(Depend on the quantity)
Q7:Delivery ways ?
A7:FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
Q8:Payment terms ?
A8: By T/T or Paypal .
100% payment for sample orders .
30% as deposit and 70% balance before shipment .
Q9: What is the fan use for?
A9:
|
Office supplies |
3D printers |
|
Industry & Scientific |
Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer. |
|
Home & Kitchen |
Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine. |
|
Computer appliances |
CPU cooler,Case. |
