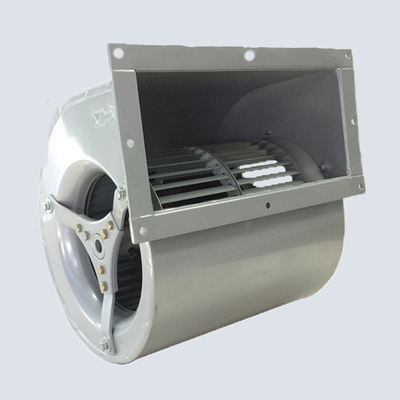

DRFA146 DRFA160 220 Volt ventilation cooling centrifugal blower fan for telecom server device
|
Electrical Parameters |
|
|
Insulation Class |
Class "B" or "F" |
|
Speed Control |
AC speed controller (AC), 0~10VDC / PWM Input (DC EC ) |
|
Type of protection |
IP44 |
|
Dielectric Strength |
5mA max. at 1500VAC 50Hz/s between frame and (+)terminal |
|
EMC |
EMC EN61000-6-3; EN 61000-6-1; EN61000-6-2/3 |
|
Material of Impeller |
PA66 Propylene with Fibreglass reinforce |
| Bearing System | Dual NMB maintenance-free ball bearing |
| Life time | 50000 hours (L10) at 40°C room, humidity15%~65%RH |
| Lead Wire |
AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains) |
| Approval | CE, CCC, ErP2015 and RoSH compliance |
| Warrent | 18 months after delivery |
|
Specification |
|||||||||
|
Item Code: DRFA160 |
|||||||||
|
Rated |
Frequency |
Rated |
Input |
Speed |
Air Flow |
Air Flow |
Static Pressure |
Noise |
Net Weight (Kg) |
|
230V |
50/60 |
≤1.8 |
410 |
1850 |
705 |
1195 |
730 |
64 |
5.9 |
|
230V |
50/60 |
≤0.79/1.07 |
180/245 |
1300/1350 |
730 |
1240 |
200 |
63 |
4.5 |
| Item Code: GRFA160 | |||||||||
|
230V |
50/60 |
≤1.05 |
240 |
2100 |
352 |
600 |
150 |
72 |
2.6
|
|
Outline Drawing |
|||||||||
|
|
| Characteristic Curves |
|
Customized Fan and Blower Solutions All of the designs in the GP Motors portfolio of Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers, Fan Motors and Fan Components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times. |
Since 1991, GP Motors has designed and manufactured the highest quality Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers , Fan Motors and Fan Components in the industry. All of our Centrifugal Fans,Axial Fans,Inline Duct Fans,Cross Flow Fans,Centrifugal Blowers,Gas Blowers and Fan Components are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang.
