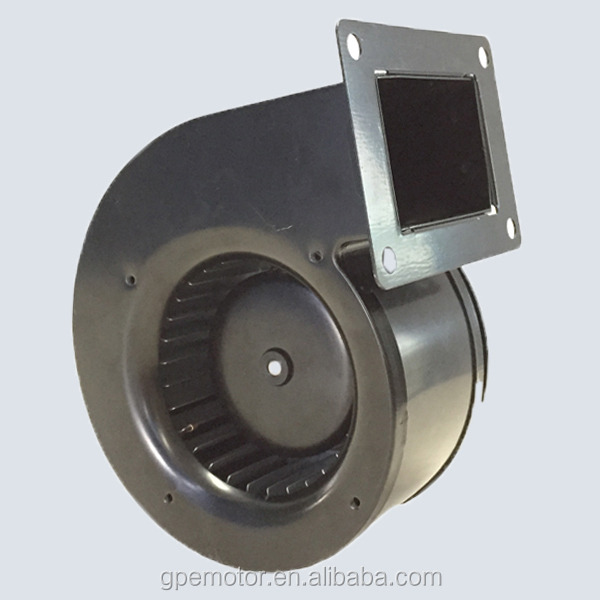

146 Stainless Steel Customs Centrifugal Blower For Inflatable Bouncers

100.0 Pieces
MOQ
146 Stainless Steel Customs Centrifugal Blower For Inflatable Bouncers
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Electric Current Type: AC
Blade Material: Stainless Steel
Mounting: FREE STANDING
Model Number: DC 146
Voltage: 230V
After-sales Service Provided: Free Spare Parts, Overseas Third-party Support Available
Power Input: 220V 120V 24/48V
Bearing: NMB Maintenance-free Ball Bearing
Impeller: Plastic PA Or Stainless Steel
Lead Wire: AWG#22 UL1007
Type Of Protection: IP44
Safety: Electronic Protection
Insulation Class: Class "B" Or "F"
Speed Control: 0-10v Or PWM Signal
Life Time: 50000 Hours (L10) At 40oC Room
Certification: CCC, Ce, GS, RoHS
Basic Infomation
Certification: CCC, ce, GS, RoHS
Model Number: DC 146
Payment & Shipping Terms
Packaging Details: Packed in Carton/Pallet.
Supply Ability: 60000 Piece/Pieces per Month
Product Description

146mm Custom Centrifugal Air Blower For Inflatable Bouncers

Product Overviews



Product Descrption

Electrical Parameters

Motor

Brushless external rotor motor

Insulation Class

Class "B" or "F"

Motor Protection

Locked rotor protection & Reverse Polarity protection

soft start & Automatic restart capability

Speed Control

0~10VDC / PWM Input

Type of protection

IP44

Dielectric Strength

5mA max. at 1500VAC 50Hz/s between frame and (+)terminal

EMC

EMC EN61000-6-3; EN 61000-6-1; EN61000-6-2/3

Mechanical Parameters

Material of Impeller

PA66 Propylene with Fibreglass reinforce

Bearing System Dual NMB maintenance-free ball bearing
Life time 50000 hours (L10) at 40°C room, humidity15%~65%RH
Lead Wire
AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains)
Operating Temperature -25°C to +60°C
Storaging Humidity 5% to 90% RH
Approval CE, CCC, ErP2015 and RoSH compliance
Warrent 18 months after delivery



Specification

Item Code:   GRF3E146

Rated
Voltage

Frequency
(Hz)

Rated
Current(A)

Input
Power(W)

Speed
(RPM)

Air Flow
(CFM)

Air Flow
(m3/h)

Static Pressure
(Pa)

Noise
dB(A)

Net Weight      (Kg)

230V

50/60

 ≤1.32

 175

 3560

359

610

640

 71

3.1

Item Code:GRF1D146

24/48

/

≤5.05/2.6

100

2200

276

470

680

68

2.8


Outline Drawing



Characteristic Curves Wire Diagram
Cable Color   Function
Brown L
Blue N
Yellow/Green PE
Red +10V output
Yellow
0-10VDC / PWM
Blue

GND

White   Tach output
Application

Customized Solution

Customized Fan and Blower Solutions

All of the designs in the GP Motors portfolio ofCentrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans,Cross Flow Fans, Gas Blowers, Fan Motorsand Fan Components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times.
